ALTOZ TRX766 SPINDLE REPAIR KIT
Product Details
UPC:
00005
Brand:
ALTOZ
ALTOZ TRX 766 / 561 Greaseable Spindle Repair Kit

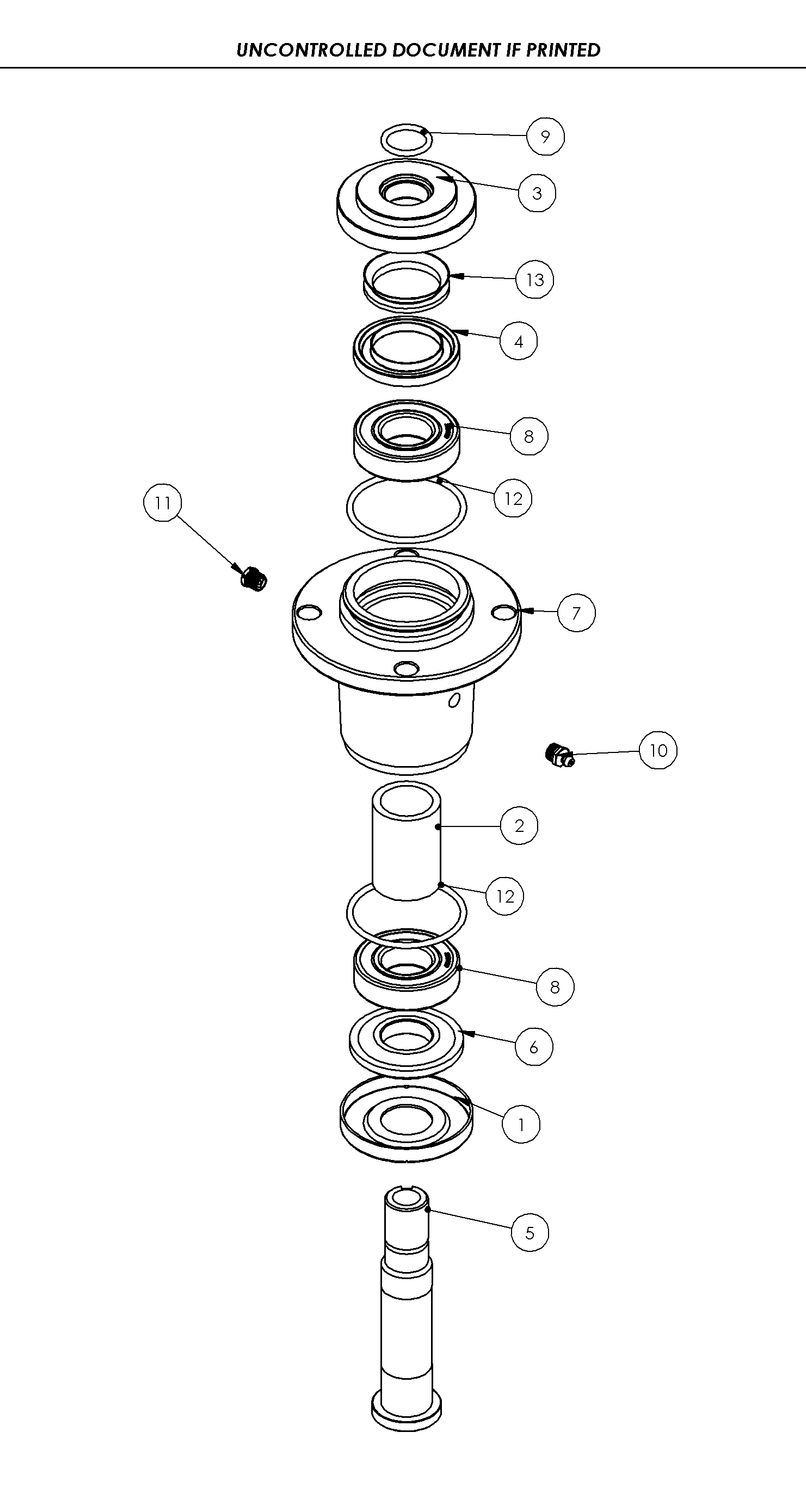

PARTS LIST:
| 3105305 | #5 - SHAFT,SPINDLE,CLAMP STYLE,PL,TRX AT | 1 |
| 3104284 | #1 - DUST SHIELD,LWR,DECK SPINDLE,ZY,TRX AT | 1 |
| 3105306 | #6 - WASHER,LOWER SEAL,SPINDLE,ZY,TRX AT | 1 |
| 5000686 | #8 - BEARING,SPINDLE,SEALED/SHIELD,TRX AT | 2 |
| 5500031 | #12 - O-RING,SPINDLE,SIZE-230,BUNA-N,TRX AT | 2 |
| 3105302 | #2 - SPACER,SPINDLE BEARING,ZC,TRX AT | 1 |
| 5000734 | #10 - GREASE FIT,STRAIGHT,1/8"NPT,ZY | 1 |
| 5000946 | #11 - FIT,GREASE RELIEF,1/8"NPT,1-5 PSI RANGE | 1 |
| 3105304 | #4 - RETAINER,V-SEAL,SPINDLE,1.66ID,ZC,TRX AT | 1 |
| 5500050 | #13 - V-LIP SEAL,SPINDLE,1.575"ID,45,TRX AT | 1 |
| 5000687 | #9 - O-RING,SPINDLE,SIZE-211,BUNA-N,TRX AT | 1 |
| 3105303 | #3 - DUST SHIELD,UPP,DECK SPINDLE,ZY,TRX AT | 1 |
OPTIONAL: If needed the spindle housing part # is 3107563
